| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Price: | E-mail: sale@aarealmachine.com |
|---|---|
| Payment Terms: | WhatsApp: 0086-15637361027 |
| Supply Ability: | https://www.aarealmachine.com |
| Drive Device: | One Set Of Vibrating Motor, Vertical Installation | Motion: | Three Dimensional Motion |
|---|---|---|---|
| Purpose: | Remove The Impurity, Grading And Filtering Etc. | Diameter: | 400mm~2000mm |
| Mesh Size: | Above 400 Mesh | Material: | Carbon Steel, Stainless Steel 304, 316L, Duplex Stainless Steel 2205, Titanium Etc. |
| Screen Structure: | L Type, Adhesive Type, Ultrasonic Type Etc. | Mesh Cleaning Device: | Balls, Ultrasonic System, Rotary Brush System Etc. |
| Characteristics: | Small Size, 1~5 Layers Of Screen, Low Noise, Environmentally Friendly Etc. | Application: | Chemical Industry, Food Industry, Mining Industry, Medical Industry, Waste Treatment Etc. |

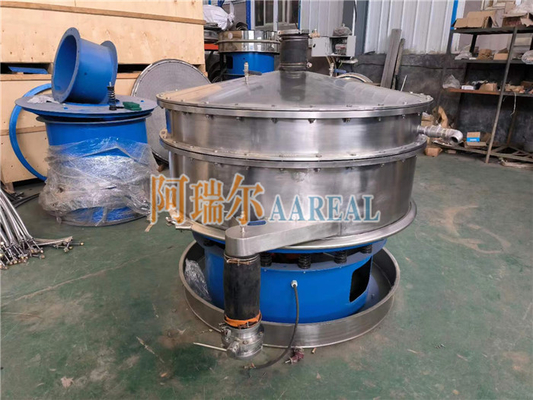

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder
In the process of NdFeb powder screening, nitrogen should be flushed into the screening system to isolate the air and prevent combustion. Therefore, the sealing of the screen machine must be very good, otherwise it will be dangerous in the production process. AAREAL specializes in the production of gas-tight vibrating screen, which has been widely used in a number of industries of product screening. Before the equipment leaves the factory, we will carry out strict test and inspection.
Overview of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder is a kind of high-precision powder sieving machine. By means of the upper and lower hammer mounted on the vibration motor, the vibrating sifter can turn the rotary motion force of the motor into three-dimensional motion (horizontal, vertical, inclined). Then this motion will be delivered to the screen surface. Thus, the sifter realizes the purpose of sieving. This series of vibrating sifters can be used to classify, grading and filtering in food, chemical, metal, mining and other industries.
Features of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
1. Up to 5 times output per unit area; accurately to 6 Level separation, sieving efficiency is higher than 95%.
2. Acceleration is five times less than the normal vibrating screen. Spare parts will have longer life. Thus reduce the maintain cost.
3. Specially used for sieving high value-added products. Thus improve the profit.
4. We use excellent silicon rubber balls ,ultrasonic wave or rotating brush for cleaning sieving mesh. No mesh blocking.
5. Noise is lower than 75 decibel. Lower foundation dynamic load.
Working Principle of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
The sealed multi-layer three-dimensional rotary vibrating sieve is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source.
The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be changed by adjusting the angle of eccentric hammers on both top and bottom parts.
The general characteristics of the vibrator adjustment are described below:
Structure Diagram of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
Important Information You May Concern About 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
| Model | AY |
| Shape | round |
| Layers of Screen | 1~5 layers of screen (suggest 1~3 layers for 400mm~1500mm machines, and suggest 1~2 layers for 1800mm~2000mm machines) |
| Mesh Size | above 400 mesh |
| Screen Frame | adhesive type, L type, ultrasonic type, double-loop type etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system, rotary brush system etc. |
| Diameter | 400mm, 450mm, 500mm, 600mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc. (Accept customization) |
| Material | carbon steel, stainless steel 304, 316L, duplex stainless steel 2205, titanium etc. |
| Function | grading, solid-separation, remove the impurity etc. |
| Movement | three dimensional vibration motion |
| Damping Spring | galvanized steel spring, stainless steel springs etc. |
| Motor | one unit of vibrating motor (vertical installation) |
| Motor Brand | China Made brand, OLI-WOLONG etc. |
Basic Function of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
1. Grading
Each model of vibrating sieve machine can precisely and continuously sift and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.
2. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
3. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
Technical Parameters of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
| Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers |
| AY-400 | 0.18 KW | 350mm | 0.0962 | suggest 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | suggest 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | suggest 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | suggest 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | suggest 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | suggest 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | suggest 1~2 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | suggest 1~2 |
Overall Dimensions of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
| Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Application of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:
1. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate etc.
2. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings etc.
3. Ceramic and abrasive: silica sand, alumina, mud etc.
4. Food industry: Sugar powder, milk powder, soybean milk, starch, salt, rice noodles, egg powder, sauce, syrup etc.
5. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle etc.
6. Paper making: Paper pulp, paint, wasted water recycling.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon etc.
