| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Movement: | Three-dimensional Motion | Motor: | One Unit Of Vibrating Motor, Vertical Installation |
|---|---|---|---|
| Material: | Stainless Steel, Carbon Steel, Plastic Material Etc. | Diameter: | 400, 600, 800, 1000, 1200, 1500, 1800, 2000mm |
| Layers Of Screen: | 1~5 Layers With 2~6 Discharge Ports | Mesh Screen: | Stainless Steel Woven Wire Mesh, Perforated Plate Etc. |
| Mesh Cleaning System: | Bounce Balls, Ultrasonic System, Rotary Brush System Etc. | Mesh Size: | Above 500 Mesh |
| Screen Frame: | L Type, Adhesive Type, Ultrasonic Type, Flange Type Etc. | Application: | PVC Powders, Sugar, Salt, Metal Powder, Pigment, Slurry Etc. |
| High Light: | 1800mm SS Rotary Vibrating Separator,PVC Powders Rotary Vibrating Separator,1800mm vibro separator machine |
||

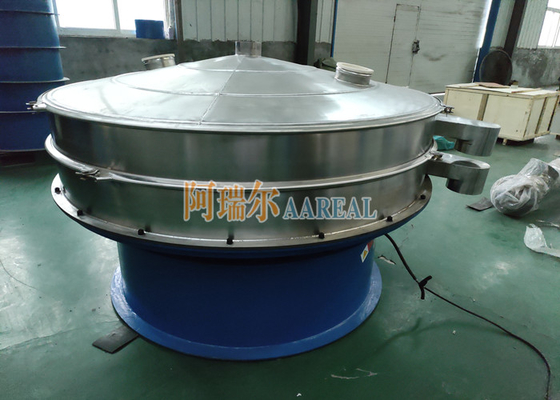

Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders
Introduction of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders is also known as the rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro screen, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.
Features of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
1. High screening accuracy, high efficiency, any powder, grain, mucus can be used.
2. The screen is not blocked, the powder is not flying, the finest screening can reach 500 mesh (28 microns) and the finest filtration can reach 5 microns.
3. Unique grid design (female and child type), long-term use of the screen, convenient network change, only 3-5 minutes, easy to operate, easy to clean.
4. No mechanical action, easy maintenance, single or multi-layer use, the contact with the material is made of stainless steel (except for medical use).
5. It is small in size, light in weight, convenient to move, and the direction of the discharge port can be adjusted arbitrarily. The coarse and fine materials are automatically discharged, which can be automated or manual.
Some Information About Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
| Model | AY |
| Shape | circular or round shape |
| Layers of Screen | 1~5 layers of screen with 2~6 outlets (suggest 1~3 layers) |
| Mesh Size | above 325 mesh (500 mesh sometimes) |
| Screen Frame | adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc. |
| Self-cleaning System | bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system and so on |
| Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
| Material | stainless steel 304, 316L, carbon steel, plastic materials etc. |
| Surface Treatment | Paint, sandblast and polish etc. |
| Function | grading, remove the impurity, solid-separation etc. |
| Movement | three dimensional vibration motion |
| Damping Spring | carbon steel spring, stainless steel spring, air spring, rubber spring etc. |
| Motor | one set of vibrating motor, verticle arrangement |
| Motor Brand | AAREAL Made, OLI-WOLONG, Italvibras etc. |
| APO Safety System | Automatic Power Off Safety System is integrated in the motor |
| Quick-wear Parts |
stainless steel woven wire mesh screen, perforated plate, bounce balls (rubber balls, silicone balls etc.), clamps, springs, sealing rubber strip etc. |
| Optional Design | discharge gate, magnetic guard, quick release clamp, glass viewing port, collecting tray etc. |
Structure Diagram of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
The rotary vibro sifter is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screen decks, material can be total carbon steel, total stainless steel or only contact parts are stainless steel according to different requirement.
Working Principle of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
The round vibrating separator is made up of a verticle vibrating motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle of the upper and lower ends can change the trajectory of the material on the screen surface.
Purpose of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
Grading Sizes Solid-liquid Separation Remove the Impurity
Technical Parameters of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
| Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers of Screen |
| AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Application of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
1. Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc.
2. Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
3. Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
5. Abrasive And Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
6. Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc.
7. Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
8. Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc.
Overall Dimensions of Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders:
| Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
Diameter 1800mm Stainless Steel Rotary Vibrating Separator for PVC Powders
