| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for small size |
| Delivery Time: | 20~30 workdays after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Characteristics: | Large Output, Low Noise And Energy Consumption, Small Size Etc. | Mesh De-blinding: | Bounce Balls, Ultrasonic Deblinding System Etc. |
|---|---|---|---|
| Surface Treatment: | Mirror Polishing, Spray Paint, Plastic Spraying, Sand Blasting Etc. | Screen Frame: | Wooden Frame, Carbon Steel Frame, Stainless Steel Frame,etc. |
| Material: | Carbon Steel, Stainless Steel, Titanium Materials Etc. | Vibrating Motor: | Double Horizontal Vibrating Motors |
| Application: | Food Industry, Chemical Industry, Mining Industry Etc. | Optional: | Explosion-proof Motor, Quick-open Clamps, Rubber Springs Etc. |
| High Light: | linear motion vibrating screen,vibratory screening equipment |
||

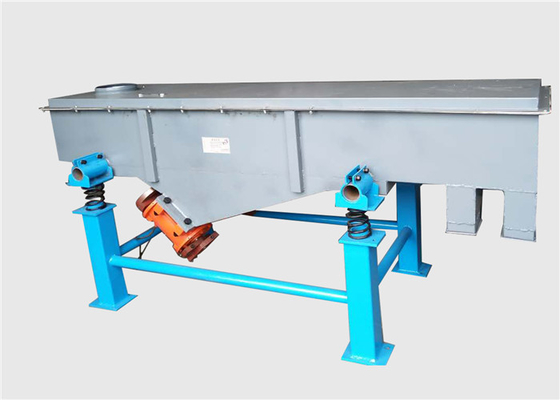

Mining Industry Linear Vibration Screener Separating Machine Multi Deck
Introduction of Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry:
Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry is a high precision fine powder screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities. Pineapple block linear vibrating screen sieve can be used for grain, powder, granule, flake, liquid materials.
Important Information About Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry:
| Model | AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc. |
| Shape | rectangular shape |
| Motion | linear vibrating motion |
| Structural Composition | screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface Angle | horizontal or inclined (0°~7°) |
| Layers of Screen | 1~6 layers of screen (The higher layers can be customized according to the actual situation) |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application | refractory material, plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff etc. |
| Surface Treatment | Sand blasting, plastic spraying, spray paint, mirror polishing etc. |
Features of Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry:
1. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
2. Easy to operate and maintain.
3. Low consumption with high yield and low cost.
4. Material auto discharge, be able to continuous operation.
5. Can be used for single or multi layer.
6. Every part of the screen box used copper plate and section welded together.
7. Good sealing without dust flying.
Structural Composition of Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry:
The rectangular vibrating screens are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.
1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Technical Parameters of Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen (°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
| AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) | |||
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Working Principle of Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry:
The linear vibrating sieve machine adopts double vibrating motors to drive, when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear. There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.
Application of Multi-deck Linear Vibration Screener Separating Machine Used In Mining Industry:
1. Food industry: starch, milk powder, yeast powder, sugar, salt, alkali, gourmet powder, pollen, food additive, bean milk, juice, etc.
2. Chemical industry: grease, paint, palette, resin pigment, medicine, etc.
3. Abrasive material and ceramic industry: abrasive, refractory material, building sand, mica, alumina, slurry, etc.
4. Plastics industry.
5. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
6. Organic fertilizer industry.
7. Mechanical industry: powder metallurgy, casting sand, electromagnetic material and metal powder, etc
8. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
