| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AL |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 15~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Other Names: | Airflow Screen, Centrifugal Sifter, Rotary Screen, Rotary Sifter Etc. | Purpose: | For Sieving Materials Of Sticky, Static And Multi-fiber |
|---|---|---|---|
| Machine Material: | Q235A, Stainless Steel 304 Etc. | Layers Of Screen: | Single Screen Layer |
| Screen Size: | Diameter*length 180*650mm, 300*1000mm, 500*1300mm Etc. | Mesh Size: | Below 500 Mesh |
| Mesh Material: | Nylon Mesh, Stainless Steel Woven Wire Mesh Etc. | Application: | Calcium Carbonate, Diatomite, White Cement, Battery Material, Starch, Glucose Powder Etc. |
| High Light: | air classifier machine,rotary sifter machine |
||

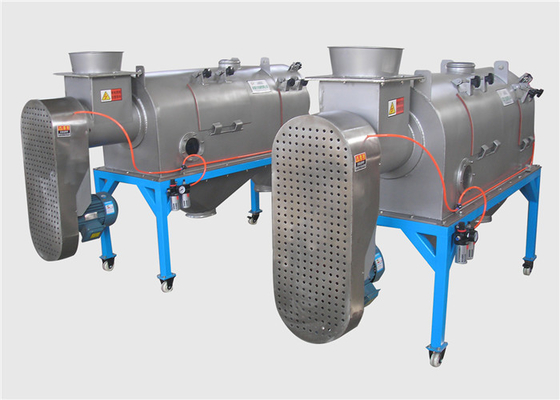

High Capacity Centrifugal Sifter Screens Rotary Trommel Screen Turbo Sieve
Introduction of Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder:
The Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder is designed to meet high-capacity scalping and sifting for both large and small process applications. Our rotary screen proves its cost efficiency daily in the handling of a wide variety of powder, granules, agglomerates and other free-flowing materials.
The centrifugal sifter is also called rotary screen, rotary sieve, rotary sifter, airflow screen, centrifugal sifter, centrifugal sieve, airflow sieve, horizontal airflow screen, turbo sieve, cyclone sieve, airflow centrifugal sifter, centrifugal screener, centrifugal powder sifter, air classifier etc.
Important Information You May Care About Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder:
| Name | centrifugal sifter, rotary sifter, airflow screen etc. |
| Model | AL-18-65, AL-30-100, AL-50-130 |
| Screen Size | diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm |
| Motion | rotary motion |
| Machine Material | Q235A, stainless steel 304 etc. |
| Mesh Material | stainless steel woven wire mesh, nylon mesh etc. |
| Layers of Screen | single layer of screen |
| Mesh Size | below 500 mesh |
| Purpose | for sieving materials of sticky, static and multi-fiber etc. |
| Application | calcium carbonate, diatomite, silica sand, quartz powder, diatomite, white cement, battery material, starch, glucose powder, herbal powder etc. |
Working Principle of Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder:
The rotary centrifugal sifter utilizes the centrifugal force generated by screw blade, pushing the material against the screen mesh, producing a high capacity separation device that separates material by particle size. This rotary screen can also be constructed to be run under pressure or vacuum if it's necessary for your application. The dust-tight unit produces no transmitted vibration and essentially no noise in typical production.
Overall Dimensions of Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder:
| Model | A | B | C | D | E | F | G | H | I | J |
| AL-18-65 | 1430 | 460 | 420 | 1005 | 135 | 230 | 250 | 330 | 340 | 210 |
| AL-30-100 | 1845 | 655 | 766 | 1240 | 320 | 285 | 300 | 350 | 380 | 290 |
| AL-50-130 | 2230 | 870 | 790 | 1775 | 280 | 515 | 150 | 660 | 400 | 485 |
Note: we can design and manufacture special type of sieving machine according to user's requirement.
Features of Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder:
1. The screen-mesh can be cleaned automatically by cyclone.
2. The new type roller bearing can prolong the service life.
3. The shell of machine is in a new design which makes it easy to install and convenient to control.
4. The machine has the function of re-crashing the agglomeration materials.
5. The whole machine is small and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.
6. The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.
7. The machine can operate either in a single unit or multiple units, and it is safe and reliable for a long time operation.
8. New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device
Technical Parameters of Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder:
| Model | Material | Apply to |
| AL-18-65 | Q235A, SUS304 | < 500 mesh |
| AL-30-100 | Q235A, SUS304 | < 500 mesh |
| AL-50-130 | Q235A, SUS304 | < 500 mesh |
General Type Cantilever Type
Stainless Steel Screen Nylon Screen
Application of Centrifugal Rotary Sifter Machine for Light Calcium Carbonate Powder:
The horizontal airflow rotary screen can be widely used in Chinese medicine powder, battery material, starch, glucose powder, xylitol, soybean protein, peanut protein, vitamin C, sorbitol, ganoderma lucidum powder, malt powder, coffee powder, bread powder, flour, condiments, food additives, traditional Chinese medicine powder, APIs, pharmaceutical raw materials, active pharmaceutical ingredients, pharmaceutical intermediates, glass beads, perlite, silicon carbide, silicon powder, activated carbon, epoxy resin, polyethylene powder, fire extinguishing agent, zircon powder, pigment (phthalocyanin blue, phthalocyanin red, phthalocyanin yellow, yellow lead, high sand ceramic pigments etc.), magnetic material, drill powder, pyrophyllite powder, barium sulfate, lithium manganese oxide, zinc borate, coal ash, silicon powder, glaze, powder coating, pollen, dehydrated vegetable, egg powder, milk powder, soda powder, essence, magnesium oxide, magnesium hydroxide, calcium oxide, silicon nitride, alumina, molybdenum disulfide, cellulose, nanograde titanium dioxide, PVC resin powder, barium sulfate, silica gel powder, guar bean gum, calcium fluoride and so on.
