| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AX |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Features: | Compact Design, Large Capacity, Fast Screen Replacement Etc. | Other Names: | Compact Sieve, Safety Screeners, Flow-thru Separator, Control Sieves, Low-profile Vibrating Sieve, Low Profile Separator, In-line Vibrating Screen Etc. |
|---|---|---|---|
| Purpose: | Suitable For Eliminating Oversized Materials Rapidly From Powders And Liquids | Screen Decks: | 1~2 Screen Layers |
| Diameter: | 400mm~2100mm | Anti-Blinding Device: | Balls, Rotary Brush System, Ultrasonic Mesh Cleaning Systems Etc. |
| Material: | Stainless Steel, Carbon Steel Etc. | Driving Device: | Single Vibrating Motor Or Double Vibrating Motors |
| Motor Brand: | OLI-WOLONG, China Made Etc. | Application: | PVC Powder, Flour, Starch, Washing Powder, Milk Powder, Metal Powder Or Granule, Additive, Chemicals Etc. |
| High Light: | Low Profile Inline Vibrating Sieve,PVC Particles Inline Vibrating Sieve,Inline vibro sieve for Powders |
||

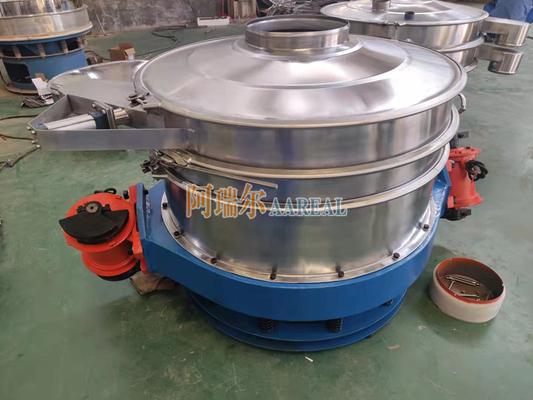

Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders
Product Introduction of Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders:
Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders is also called compact sieve, flow-thru separator, low-profile vibrating sieve, inline vibrating screen etc. It is a powerful high-efficient machine that compacts high capacity scalping for both wet and dry materials.
The inlet and outlet design are in the same vertical direction, finished product rapid through the mesh, reducing materials stay time on the screen surface, a substantial increase in screening output.
Besides, the negative pressure environment, dust-free environmental protection straight sieve can be used with the vacuum feeder directly, screening and conveying dust-free operation.
Working Principle of Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders:
The stainless steel low-profile vibrating separator adopts high-frequency vibration motor as the excitation source, the materials do three-dimensional rotary motion on the screen surface after into the system, flour and agglomeration fully dispersed, rapid through mesh directly to the lower silo. Foreign matter and impurities are separated and discharged to the slag discharge port, the machine play the role of “safety officer” on the production line. It is can be used in the feed system of front production line of instant noodles, noodles, snacks, solid drinks, etc, to separate the foreign matter from the raw materials (flour, starch, milk powder, additives, etc.). Because it is in series with the system and automatically separates foreign matter, it is honored as the “safety officer” on the food production line. The flour sieve can replace the manual observation of the foreign matter and check-up action.
Characteristics of Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders:
1. Feeding Inlet and material discharge outlet in same centerline helps in reduction of process time by reducing the movement of material.
2. Low headroom design that easily fits into existing product lines.
3. Low manpower and maintenance costs.
4. Very easy to operate.
5. Inlets and Outlets can be customized to meet existing plant requirements.
6. Available with Clean in Place systems.
7. Quick mesh change system.
Technical Parameters of Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders:
| Model | 400 | 600 | 800 | 1000 | 1200 | 1300 | 1500 |
| Power | 0.1kw | 0.1kw | 0.1kw | 0.2kw | 0.2kw | 0.2kw | 0.4kw |
| Screen Diameter | 350mm | 550mm | 750mm | 920mm | 1005mm | 1120mm | 1420mm |
Note: the data above are for reference only, and our company reserves the right to modify the data.
Some Important Information You May Concern About Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders:
| Alternative Name | flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve, flo-thru sifter etc. |
| Motor | single vibrating motor, dual vibrating motors (optional) |
| Height | can be made as low as 300~400mm |
| Mesh Debling System | ultrasonic deblinding system, bouncing balls, rotary brush system etc. |
| Screen Decks | 1~2 screen decks (multiple layers can be customized according to the specific situation) |
| Machine Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc. |
| Discharge Port | the discharge port for fine particles are at the bottom of the machine |
| Purpose | suitable for materials safety screening with less oversize particles |
| Machine Shape | round, rectangular |
| Damping Spring | steel spring, rubber spring etc. |
| Application | flour, starch, milk powder, additives, instant noodles, noodles, snacks, solid drinks etc. |
| Voltage | three-phase/380V, 415V, 440V etc. |
Application of Stainless Steel Low-profile Inline Vibrating Control Sieve for PVC Particles and Powders:
The low-profile inline vibrating screen can be used for screening Chinese medicine granules, Chinese medicine powder, pharmaceutical intermediates, Chinese Herbal Medicine, plant extracts, biological agents, etc.
Metals, metallurgy powder,etc.Granulation feed, crushed feed,etc.
