| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Movement: | Rotary Motion | Other Names: | Trommel Screen, Rotary Screen, Rotary Sifter, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc. |
|---|---|---|---|
| Advantages: | Large Capacity, Mesh Hole Is Not Easily Blocked, Simple In Structure Etc. | Feature: | Overcome The Mesh Plugging Problem Caused By Traditional Vibrating Screen During Sieving Wet Materials |
| Screen Drum Size: | Diameter*Length 1000*4000mm | Segment: | 1~4 Segment (with 2~5 Discharge Ports) |
| Surface Treatment: | Paint, Polish, Sandblast Etc. | Tilt Angle: | 5°~7° |
| Material: | Carbon Steel, Stainless Steel 304, 316L Etc. | Application: | Herb, Refractory Materials, Coal, Chemical Fertilizers, Sand Yard Stones, Solid Wast Separation Etc. |
| High Light: | 1000*4000mm Rotary Trommel Screen,Chamomile Rotary Trommel Screen,Peppermint rotary drum screen |
||

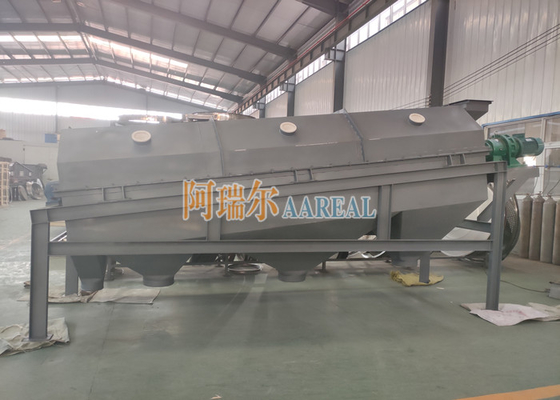

1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens
Introduction of 1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens:
1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction.
Application of 1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens:
1. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
2. Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc.
3. Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
4. Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
5. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Working Principle of 1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens:
When the materials enters the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface is overturned and rolled so that the fine material is discharged through the discharge port at the bottom of the back end of the drum of trommel screen, and the coarse material is discharged through the discharge port at the tail of the drum discharge. As the material in the drum devise flip, rolling, so the materials stuck in the sieve can be ejected to prevent the sieve blocking.
Material Running State in the Rotary Screen
Some Important Information About 1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens:
| Other Names | rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc. |
| Movement | rotary centrifugal movement |
| Power Source | general motor and reducer |
| Type | with shaft, shaftless (optional) |
| Angle of Inclination | 5°~7° |
| Model | AGTS600, AGTS800, AGTS1000, AGTS1200, AGTS1500, AGTS1800, AGTS2000 |
| Material | carbon steel, stainless steel 304, 316L etc. |
| Advantages | overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials |
| Features | have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened |
Structure of 1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens:
Trommel screen consists of motor, reducer, screen frame, inlet, outlet, support base, and so on.
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
Features of 1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens:
1. Large screening volume, easy for large scale
Under the same size, the area of a circle is larger than that of any other shape, so the effective area of its screening is larger, materials can fully touch screen cloth, thus the screening capacity in unit time is larger. It is also easy for large scale due to simple structure and convenient arrangement.
2. High screening efficiency
It is equipped with comb-type screen cleaning mechanism, no matter how dirty and miscellaneous the materials that have entered into the screening drum during screening, thus increasing the screening efficiency.
3. Good working environment
The whole screening drum can be sealed with sealing isolation hood, thus reducing the noise of equipment, and thoroughly remove dust flying, lump splashing during screening circulation process, avoiding pollution to working environment.
4. Convenient maintenance
The upper sealing isolation hood can be taken apart, which does not affect the normal operation of machine, and allows very convenient maintenance
5. Wide adaptability of materials
The Trommel Screen is widely used in screening of various materials, regardless of fault coal, coal slime and soot and other materials, they are all screened smoothly.
Technical Parameters of 1000*4000mm Rotary Trommel Screen for Chamomile and Peppermint with Three-segment Screens:
| Model |
Capacity (t/h) |
Screen Drum Diameter (mm) |
Length (m) |
Motor Power (KW) |
| AGTS600 | 5-10 | 600 | 1000 | 1.5 |
| AGTS800 | 8-15 | 800 | 1200 | 2.2 |
| AGTS1000 | 15-30 | 1000 | 1500 | 3 |
| AGTS1200 | 20-50 | 1200 | 1800 | 5.5 |
| AGTS1500 | 40-80 | 1500 | 2000 | 7.5 |
| AGTS1800 | 80-150 | 1800 | 2000 | 11 |
| AGTS2000 | 130-200 | 2000 | 2500 | 11 |
