| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Other Names: | High Frequency Sieve, High Frequency Vibro Screen | Feature: | High-frequency Vibration, 3000 Times/min |
|---|---|---|---|
| Purpose: | Solid-liquid Separation, Removal Of Impurities | Material: | Stainless Steel 304, 316L Etc. |
| Layers Of Screen: | 1~2 Layers Of Screen | Characteristics: | Low Amplitude, High Efficiency, High Screening Frequency And Low Noise |
| Vibrating Motor: | One Unit Vibrating Motor, Verticle Arrangement, 2 Pole | Application: | Ceramic Glazes, Powder Coating, Soybean Milk, Slurry Etc. |
| High Light: | wet screening equipment,wet vibrating screen |
||

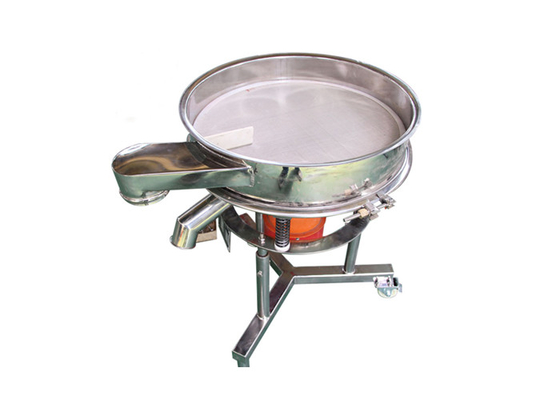

Introduction of High Frequency Round Vibro Filter Sieve Machine for Oil Paint Filtering:
For the efficient sieving of slurry materials, after years of practice and research, our company develop the high-frequency vibro filter sieve machine to solve the problems during sieving process. So that the high capacity can be guaranteed while sieving precision can be assured.
The high-frequency vibro sifter destroys the tension of the slurry surface by high-frequency vibration and increases the high-speed oscillation of the fine-grained material on the sieve surface, accelerates the large-density (specific gravity) useful materials and separation, and increases the percentage of undersized fine materials touching the sieve. So that, the capacity can be increased sharply.
Purpose of High Frequency Round Vibro Filter Sieve Machine for Oil Paint Filtering:
1. Solid-liquid separation: this equipment can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.
2. Removal of impurities: this equipment can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.
Working Principle of High Frequency Round Vibro Filter Sieve Machine for Oil Paint Filtering:
The high frequency vibro sieve is a vibratory screening device. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any product: wet or dry, heavy or light, coarse or fine, hot or cold etc.
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
More Information About High Frequency Round Vibro Filter Sieve Machine for Oil Paint Filtering:
| Name | high frequency vibrating screen |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional vibration |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minutes |
| Exciting Force | 3KN~15KN |
| Material | stainless steel 304, 316L etc. |
| Application |
ceramic glazes, powder coating, soybean milk, slurry etc. |
Features of High Frequency Round Vibro Filter Sieve Machine for Oil Paint Filtering:
1. high-frequency vibration, up to 3000 times/min, fine-grained, high-viscosity materials screening is more effective.
2. unique mesh structure, convenient installation network.
3. high screening accuracy, high efficiency, no flour, grain, mucus class can be applied.
4. in addition to the vibration motor all made of stainless steel, elegant appearance.
5. small size, light weight, easy to install mobile, height can be adjusted freely.
Technical Parameters of High Frequency Round Vibro Filter Sieve Machine for Oil Paint Filtering:
| Diameter (mm) |
Power (kw) |
Effective Diameter of Mesh (mm) |
Exciting Force(kN) | Weight (kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Application of High Frequency Round Vibro Filter Sieve Machine for Oil Paint Filtering:
The round high frequency vibro sieve machine is widely used in ceramic industry, food industry, chemical industry, pharmaceutical industry, abrasive abrasives, metallurgy industry any powder, grain, mucus screening filtration
