| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for small size |
| Delivery Time: | 20~30 workdays after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Alternative Names: | Linear Vibrating Screen, Rectangular Separator, Horizonal Vibrating Screen Etc. | Applicable Materials: | Silica Sand, Quartz Sand, PVC, Carbon Coke, Sodium Carbonate Etc. |
|---|---|---|---|
| Movement: | Linear Movement | Power Source: | Two Horizontal Vibrating Motors |
| Characteristics: | Large Capacity, Multi-deck Screening, Low Noise, Easy To Clean And Install Etc. | Mesh Cleaning Device: | Rubber/ Silicone Balls, Ultrasonic Deblinding System Etc. |
| Screen Frame: | Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc. | Screen Surface: | Horizontal Or Slanted (inclination Angle 0°~7°) |
| High Light: | linear motion vibrating screen,vibratory screening equipment |
||

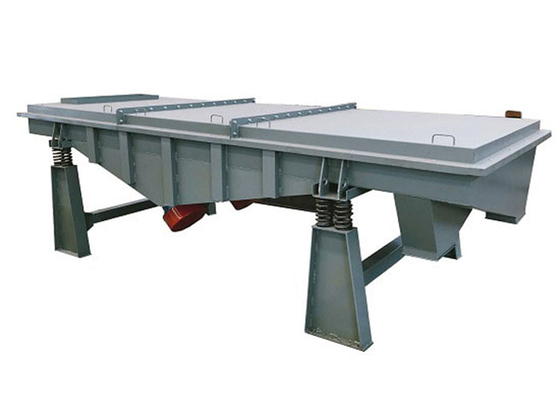

Bauxite Rock Multi Deck Vibrating Screen Machine Rectangular Sifter Long Life
Introduction of Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock:
The Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device. The excellent horizontal motors are used as the power source to make the material be sifted on the screen while moving forward in a straight line. It can be equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection, washing, dehydration and other purposes.
The linear vibrating screen can also be called rectangular separator, linear vibrating screen, linear vibrating sieve, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.
Characteristics of Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock:
1. Low consumption with high yield and low cost.
2. Can be used for single-layer, multi-layers screening with long life.
3. Simple structure, easy to install and maintain.
4. Sieve body parts adopt steel plates and sectional material welded together (part of the body for bolt connection) the overall good stiffness, strong and reliable.
5. Good sealing without dust flying.
6. Material auto discharge, be able to continuous operation.
Working Principle of Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock:
The linear vibrating screens use two vibrating motorsas the power source. When two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction, so its movement trajectory is linear. There is an angle of inclination two motor axis relative to screen deck, under the influence of exciter force and materials self weight,materials are threw up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials. Applied in flowing line to achieve automatic operation.
Important Information About Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock:
| Other Names | linear vibrating sieve, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc. |
| Shape | rectangular shape |
| Motion | linear motion |
| Structural Composition | screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface | horizontal or inclined (0°~7°) |
| Layers of Screen | 1~6 layers of screen (The more layers can be customized according to the actual situation) |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Deblinding System | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application | plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc. |
Technical Parameters of Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen (°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
| AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) | |||
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Structure of Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock:
The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device etc.
1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Application of Multi-deck Linear Vibrating Sieve Machine for Bauxitic Rock:
1. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
2. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.
3. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
5. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
6. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
7. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.
