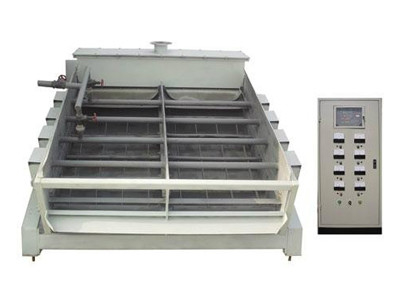

Iron Ore Rectangular Vibrating Screen Electromagnetic Wire Cloth Screen Machine

Iron Ore Rectangular Vibrating Screen Electromagnetic Wire Cloth Screen Machine

  • Iron Ore Rectangular Vibrating Screen Electromagnetic Wire Cloth Screen Machine
  • Iron Ore Rectangular Vibrating Screen Electromagnetic Wire Cloth Screen Machine
Iron Ore Rectangular Vibrating Screen Electromagnetic Wire Cloth Screen Machine
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: ZWS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 30~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Features: Only The Mesh Vibrates, The Screen Box Does Not Vibrate Purpose: Screening, Grading, Dewatering And Desilting Of Fine Materials
Screen Dip Angle: 20°~35° Vibration Intensity: 8~10g
PLC Controller: Yes Vibration Amplitude: 1~2mm
Characteristics: Minimal Dynamic Load, Small Footprint, Safe To Use, Easy To Maintain Etc. Application: Iron Ore, Tailings Dry Dewatering, Ore Dressing, Compound Fertilizer Industry Etc.
High Light:

dewatering vibrating screen

,

material screening equipment

Iron Ore Rectangular Vibrating Screen Electromagnetic Wire Cloth Screen Machine



Introduction of Iron Ore Mine High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine:
Iron Ore Mine High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine consists of a vibrator, pulp distributor, screen frame,rack,suspension spring, mesh and other components. It has the advantages of high efficiency, small amplitude and high screening frequency, and is an effective equipment for screening and grading of fine materials. It is widely used in sieving and grading operation of iron ore, tin, tungsten, tantalum, niobium and other concentrator.



Working Principle of Iron Ore Mine High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine:

  The High Frequency Vibrating Wire Mesh Screen Machine is applicable to the fine particles sperating of ore grinding and grading production line in concentrating mill, in the condition of suitbal feeding desinty and feeding granularity(-200 mesh), when the difference of demand granularity and feeding granularity is below 30%,then the screening efficiency could be up to 70% above. . Because of it's high screening efficiency, the recycle load and qualified grade levels of the screening materials could be reduced, consequently,the handling capacity of the mill mahcine will be improved by 5%-10%. In the grading and sieving process, the machine can strictly contrlo the granularity size so as to improve the sieving quality. Besides,it also has the funtion of delamination upon the desinty when the ore pulp on effect of small amplitude vibration of the screen surface. The high desinty and small granularity is easy to subside to the screen surface so as to improve the sieving quality.

   High frequency electromagnetic vibrating screen uses the latest digital electronic control and electromagnetic vibration principle. The screen box has no vibration, and only the screen surface has vibration. The amplitude of the screen surface can reach 1-3mm, and the vibration intensity is 3-4 times as strong as that of general screening equipment, so the screen mesh can never be blocked. The screen surface has an excellent self-cleaning ability, high efficiency and a large capacity. The screen mesh is made of composite stainless steel, and the opening rate is as high as 38%. Besides, the screening angle can be adjusted (20 ° -26 °).
  High frequency vibrating screen has a strong adaptability in grading size and has a relative accuracy in the control of particle size. The high frequency play an important role in fine classification and has now become the mainstream of fine grading equipment. Compared with mechanical high frequency screen, electromagnetic high-frequency screen not only delivers the vibration but also plays a role in clearing network for its unique exciting way transforming vibration by hitting the screen, so the electromagnetic high-frequency screen has the obviously advantages in the same type equipment, which has fully embodied in the applications of practice. In addition, because the screen frame of the electromagnetic screen does not move, it is easy to realize the large scale in the structure. The single screen surface area can reach 30 m2, and the electromagnetic high frequency vibrating screen will be the developing trend of fine grading equipment.



Features of Iron Ore Mine High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine:

1. Large processing capacity and high screening efficiency.
2. The vibrator is lubricated with bearing thin oil and external block eccentric structure. It has the characteristics of large excitation force, small bearing load, low temperature and low noise. (The bearing temperature rise is less than 35°).
3. The whole disassembly and assembly of the vibrator is convenient for maintenance and replacement, which greatly shortens the maintenance period. (It takes only 1 to 2 hours to change the vibrator).
4. The side plate of the sieve machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the beam and the side plate is connected by torsion-cutting high-strength bolts, without welding, and the beam is easy to replace.
5. The sieve machine adopts rubber spring to reduce vibration, and has the advantages of low noise, long service life, stable over-common vibration zone and small dynamic load of each branch of the sieve machine.
6. The motor and the exciter are connected by a flexible coupling, which has the advantages of long service life and small impact on the motor.



Application of Iron Ore Mine High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine:

  The High Frequency Vibrating Wire Screen Machine can be widely used in pharmaceutical, alkali, mineral processing, brick, fertilizer, coal preparation, chemical, food, paper and other industries in a variety of dry materials, wet screening, grading, dehydration. For the fine grading process in the ore dressing grading process, the difference between the appropriate feed concentration, the feed particle size (-200 mesh grade), and the difference between the particle size and the feed size of the demand sieve is less than 30 percentage points Conditions, the screening efficiency as high as 70% or more.



Technical Parameters of Iron Ore Mine High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine:

Model Screen Area (㎡) Working Frequency (Hz)

Screen Slope

( °)

Power

(Kw)

Weight (Kg) Reference Size (including maintenance platform)
L*W*H (mm)
2ZWS1518-D-II 2×2.7 50 20;25;30;35 1.8 4300 3603*3824*2856
3ZWS1518-D-II 3×2.7 50 20;25;30;35 2.7 5500 4348*3824*3390
2ZWS2018-S-II 2×3.6 50 20;25;30;35 3.6 5300 3649*4456*2830
3ZWS2018-S-II 3×3.6 50 20;25;30;35 5.4 8000 4348*4456*3300
4ZWS2018-S-II 4×3.6 50 20;25;30;35 7.2 10900 4829*4450*3900
2ZWS2020-S-II 2×4.0 50 20;25;30;35 3.6 5500 3750*4456*2814
3ZWS2020-S-II 3×4.0 50 20;25;30;35 5.4 8400 4575*4456*3305
4ZWS2020-S-II 4×4.0 50 20;25;30;35 7.2 11500 5220*4456*3996
2ZWS2418-S-II 2×4.32 50 20;25;30;35 3.6 5700 3649*4766*2856
3ZWS2418-S-II 3×4.32 50 20;25;30;35 5.4 8600 4348*4766*3297
4ZWS2418-S-II 4×4.32 50 20;25;30;35 7.2 11700 4829*4766*3832
2ZWS2420-S-II 2×4.8 50 20;25;30;35 3.6 5900 3750*4766*2835
3ZWS2420-S-II 3×4.8 50 20;25;30;35 5.4 9000 4575*4766*3300
4ZWS2420-S-II 4×4.8 50 20;25;30;35 7.2 12300 5220*4766*3900
