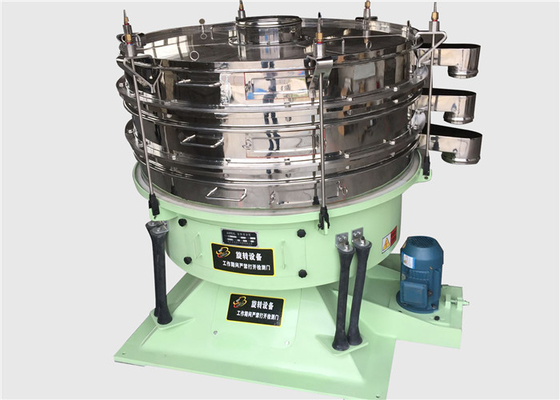

Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride

Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride

  • Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride
  • Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride
Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Model: AY-600, 800, 1000, 1200, 1500, 1800, 2000, 2300 Etc. Screening Accuracy: High Upto 90%~99.9%
Mesh Size: Below 400 Mesh Layers Of Screen: 1~5 Layers Of Mesh Screens
Mesh De-blinding: Bounce Balls, Ultrasonic De-blinding System, Rolling Brush, Air Brush Etc. Surface Treatment: Polishing, Painting, Sandblasting Etc.
Material: Carbon Steel, Stainless Steel 304, 316L Etc. Vibrating Motor: Optional General Motor, Explosion-proof Motor Etc.
High Light:

Sodium Chloride Tumbler Screener

,

Sodium Chloride tumbler sifter

,

Vibrating Tumbler Screener

Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride



Introduction of Large Output and High Accuracy Tumbler Screening Machines for Sodium Chloride:

Large Output and High Accuracy Tumbler Screening Machines for Sodium Chloride is an low frequency and high efficiency rotary vibrating screen which simulate manual hand shaking motion. The working principle of tumbler screen is instantaneous movement of the radial direction displacement and circular motion with this radial displacement as the axis (spiral motion), the exciter generates of swing tumbler screen nonlinear three dimensional motion, the materials also generates similar motion of manual operation, and achieve separating purpose.



Technical Parameters of Large Output and High Accuracy Tumbler Screening Machines for Sodium Chloride:

Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride 0

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5



Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride 1Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride 2

            BALANCE IS IMPORTANT !!                                 Pneumatic Lifting Device



Working Principle of Large Output and High Accuracy Tumbler Screening Machines for Sodium Chloride:

  The tumbler screener machine is an artificial imitation of shaking low frequency vibration sieve. The adjustment of the machine in response to the product to be screened provides an exactly defined three dimensional eccentric motion pattern with radial and tangential inclination.

  The basic rotary motion is similar to manual screening. Eccentricity is adjustable from 25 to 40mm, and low speed v-belt drive is adjustable from 120 to 360rpm. The residence time of each material can be adjusted by swinging the radial and corner cut of the sieve towards the driving axis.

So that build up a horizontal and throw 3D roll motion. Material from the center to the outer edge is evenly dispersed on the whole screen surface, thus propagating axially with spiral movement. This completes the whole screening process of fine particles.

  The horizontal and vertical accelerations increase with the movement of the particles and the particles close to the size of the sieve hole separate successfully. The larger material is transported to the exit, where the flow is controlled by an adjustable guide which is another factor controlling the material residence time. This process is repeated between each screen.



Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride 3Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride 4



Advantages of Large Output and High Accuracy Tumbler Screening Machines for Sodium Chloride:

1. Screening process that goes gentle on the material being screened
2. Up to 6 decks and 7 particle size ranges; screen surface area/deck: 0.28–6.40 m2
3. Throughput of up to 40 t/h
4. Tumbling motion can be adjusted in a continuously variable manner with RATEX system
5. Features internal seals, gas-tight up to 50 mPa
6. High grading accuracy of up to 99%



Important Information About Large Output and High Accuracy Tumbler Screening Machines for Sodium Chloride:

Motion involute spiral motion
Screening Accuracy upto 90%~99.9%
Diameter 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc.
Mesh Cleaning Method bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure whole adhesive screen, or splicing segmented screen etc.
Layers of Screen 1~5 layers of screen
Diameter 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
Optional quick clamps, pneumatic lifting devices etc.
Application can be used for material that is flammable, explosive and easy to generate static
Motor Brand Siemens, ABB, BEGEMA etc.
Surface Treatment polishing, sandblast, paint spraying etc.



Application of Large Output and High Accuracy Tumbler Screening Machines for Sodium Chloride:

1. Food industry: starch, milk powder, yeast powder, sugar, salt, alkali, gourmet powder, pollen, food additive, bean milk, juice etc.

2. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

3. Abrasive material and ceramic industry: abrasive, refractory material, slurry, building sand, mica, alumina, etc.

4. Chemical industry: resin pigment, grease, paint, medicine, palette, etc.

5. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.



Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride 5Large Output Tumbler Screener Vibrating Sieve Separator For Sodium Chloride 6
