| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for small size |
| Delivery Time: | 20~30 workdays after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Motion: | Linear Movement | Purpose: | Suitable For The Rough Screening Operation With High Capacity |
|---|---|---|---|
| Drive Device: | Two Horizontal Vibrating Motors | Screen Surface: | Horizontal Or Inclined |
| Screen Frame/Holder: | Wooden Screen Frame, Carbon Steel Screen Frame, Stainless Steel Screen Frame Etc. | Screen Width*Length: | 500*200mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm Etc. |
| Mesh Size: | 0.074mm~10mm | Material: | Stainless Steel 304, 316L, Carbon Steel, Titanium Material Etc. |
| High Light: | linear motion vibrating screen,horizontal vibrating screen |
||

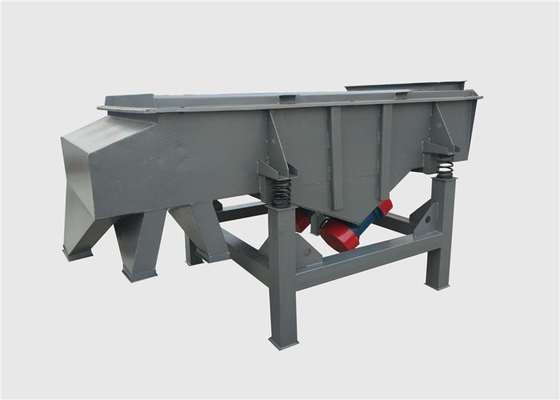

Multi Stage Rectangular Vibrating Screen Ceramsite Sand Screening Equipment
Overview of Multi-stage Rectangular Vibrating Screen For Ceramsite Sand Grading:
The multi-stage rectangular vibrating screen for ceramsite sand grading is is an efficient new screening equipment, which is widely used in coal, metallurgy, mining, building materials industry. It is also known as the linear vibrating screen, rectangular separator, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.
This sieving machine use two units of horizontal vibration motors as the power source, so that the screened material was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet. It can be supplied of different sizes depending on capacity required. And can be supplied of multi-layer as requirements of screening aim. Inlets, outlets and legs can be customized to fit your installation requirements.
Technical Parameters of Multi-stage Rectangular Vibrating Screen For Ceramsite Sand Grading:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen(°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
| AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) | |||
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Important Information About Multi-stage Rectangular Vibrating Screen For Ceramsite Sand Grading:
| Shape | rectangular shape |
| Structural Composition | screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface | horizontal or inclined |
| Layers of Screen | 1~6 layers of screen |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame |
| Mesh Cleaning Method | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*200mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
Working Principle of Multi-stage Rectangular Vibrating Screen For Ceramsite Sand Grading:
The rectangular separator uses double vibrating motors to be power source, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction, so its movement trajectory is linear. There is an angle of inclination two motor axis relative to screen deck, under the influence of exciter force and materials self weight,materials are threw up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials. Applied in flowing line to achieve automatic operation.
Features of Multi-stage Rectangular Vibrating Screen For Ceramsite Sand Grading:
1. High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very high and working noise is low.
High sieving precision
The material has a long stroke on the screen surface, high screening precision and large processing capacity.
2. Movable screening process
At the same time of screening, the material has been transported over long distances.
3. Easy to repace screen and parts
Using a special grid structure design, the screens and parts can be easily changed and tighten.
4. Suitable for different screening sizes
Change the screen spacing and inclination according to material size, permeability probability and productivity
5. Flexible machine structures
Different shapes and structures can be designed according to the production site.
6. Good sealing and minimal dust spillage
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.
7. Low maintenance cost and long service time
All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm and reliable for very long time.
Application of Multi-stage Rectangular Vibrating Screen For Ceramsite Sand Grading:
Foodstuffs industry: Sugar, salt, alkali milk, powder, soybean milk, yeast etc.
Pharmacy: Chinese medicine powder, western medicine powder etc.
Chemical industry: Resin, powder, paint, fine powder, soda, citric acid etc.
Ceramic industry: Alumina, quartz sand, slurry, glaze and pigment etc.
Metallurgy: Metal powder, welding rod powder etc.
Paper making industry: Black and white liquid paper, pulp, waste water recycle etc.
Pollutant treatment: Rubbish waste, oil animal, droppings etc.
Structure of Multi-stage Rectangular Vibrating Screen For Ceramsite Sand Grading:
Rectangular separator is mainly composed of screen box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.
1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
