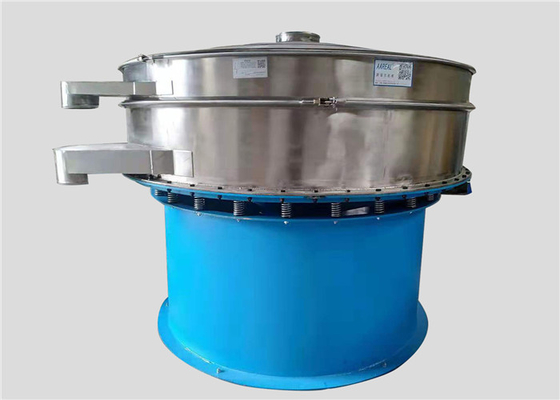

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin

  • Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin
  • Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin
Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Function: Used For Particle Size Grading, Impurity Removal, Filtering, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc. Movement: Three Dimensional Vibration Motion
Drive Device: One Set Of Vibrating Motor, Verticle Arrangement Material: Carbon Steel, Stainless Steel 304, 316L Etc.
Screen Frame: L Type, Adhesive Type, Ultrasonic Type Etc. Layers Of Screen: 1~5 Screen Decks (suggest 1~3 Layers) With 2~6 Outlets
Characteristics: Small Size, Outlet Can Be Adjustable In The Range Of 360°, Can Be Equipped With Anti-blocking Device Etc. Motor Brand: OLI-WOLONG, China Made Etc.
High Light:

vibro sieve machine

,

round separator



Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin



Overview of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

The multi-deck three dimensional rotary vibrating filter sieve for UF urea-formaldehyde resin is also called rotary vibrating sieve, rotary vibrating screen, round vibro sieve, gyro screen, gyro sieve, round separator, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, vibrating sifter, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro screen, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.

  The Chinese high capacity rotary vibration filter sieve is a high precision fine powder screening machine.The fundamental principle of rotary vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities. Chinese high capacity chemical rotary vibration filter sieve can be used for grain, powder, granule, flake, liquid materials.

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin 0



Working Principle of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

  The multi-deck rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface.

  Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin 1

  The general characteristics of the vibrator adjustment are described below:

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin 2



Structure Diagram of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin 3

Features of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

1. It is suitable for any powder, particles and sticky liquid materials.
2. Green product with dust cover that prevent dust pollution and powder flying.
3. Screened materials can be automatically discharged.
4. Be equipped with anti-blocking device.
5. Outlet can be adjustable in the range of 360 °, which is convenient to arrange.
6. Can install to 1~5 layers as buyer’s requirements.



Basic Function of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin 4

         Grading & Sieving                     Impurity Removal                  Solid-liquid Separation



1. fine grading, control particle size range

Separating and screening of different particle sizes solid particle group with narrow particle size range



2. multi-group classification, control particle size range

Separating and screening of solid particle groups with different particle sizes, can be divided into five groups at the same time



3. coarse screening

Separating and screening large particles or ultra fine particles, and achieving high productivity



4. fluffy powder

According to the process requirement, the powder can be fluffy, so that the powder can be mixed into the air, easy to mix other materials



5. filtration and product recycling

It can be used to filter out the large particles in various slurry, or to dehydrate the solid-liquid mixture, or to recycle useful solid particles



6. wastewater purification and water pollution control

It can efficiently recycle useful solid particles and purify water for reuse



Application of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

1. Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar etc.
2. Abrasive & Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
3. Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
4. Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder etc.
5. Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
6. Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles etc.
7. Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing etc.



Technical Parameters of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3

Three Dimensional Round Vibrating Screen For UF Urea Formaldehyde Resin 5

Overall Dimensions of Three Dimensional Rotary Vibrating Filter Sieve for UF Urea-formaldehyde Resin:

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410
