Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: ZWS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 30~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Features: No Mesh Blocking, With Strong Sieve Surface Self-cleaning Ability, High Screening Efficiency And Large Processing Capacity Movement: The Screen Box Does Not Vibrate, And Only The Screen Mesh Vibrates
Purpose: Very Suitable For Screening Of Fine Particle Materials Screen Surface: The Screen Is Composed Of Three Layers Of Woven Mesh, Or Single Layer Mesh Of Coarse Silk
Screen Angle: Can Be Easily Adjusted To Meet The Nature Of Materials And Different Screening Operations Application: Chemical And Compound Fertilizer Industry, Ore Dressing (iron Ore, Quartz Sand, Kaolin Etc.), Dewatering (coal Slime Dewatering, Tailings Dry Dewatering, Gold Ore Powder Carbon Recovery And Dehydration Etc.), Dry Material Sieve Etc.
High Light:

inclined vibrating screen

,

dewatering vibrating screen

High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment

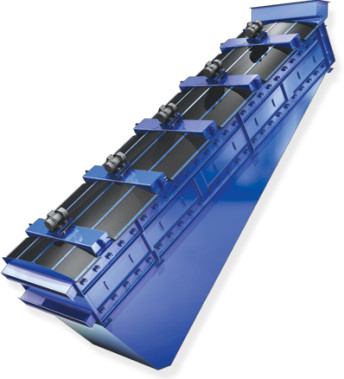

Overview of Vibrating Wire Cloth Screen Machine:

Vibrating wire cloth screen machine is a new type of screening equipment. The screen body does not vibrate, and only the screen mesh vibrates. With small dynamic load, low power consumption, high screening efficiency and large processing capacity, it is widely used in chemical and compound fertilizer industry, ore dressing (iron ore, quartz sand, kaolin etc.), dewatering (coal slime dewatering, tailings dry dewatering, gold ore powder carbon recovery and dehydration etc.), dry material sieve etc.



Features of Vibrating Wire Cloth Screen Machine:

1. The sieve surface vibrates, while the screen box does not.

2. No mesh blocking. With strong sieve surface self-cleaning ability, high screening efficiency and large processing capacity.

3. It is very suitable for screening of fine particle materials.

4. The screen is composed of three layers of woven mesh. And the composite screen has a high opening rate. The screen can also use single layer mesh of coarse silk.

5. The screen installation angle can be easily adjusted to meet the nature of materials and different screening operations.



Technical Parameters of Vibrating Wire Cloth Screen Machine:

Model Screen Surface  Feeding  Particle Size (mm)

Capacity

(t/h)

Vibration   Frequency  (min-1) Double   Amplitude  (mm)    Power
(kw)
Dimensions
(mm)
 Weight
(kg)
 Layers   Area  (m2)  Dip   Angle  (°)      Mesh  Size
(mm)
 Structure
ZWS1230 1 3.6 37 10*40 woven ≤60 30~35 1450 3~5 0.85*2  3090*1700*3169  1623
 2ZWS1230  2 3.6 33  Upper:  4*50
Lower: 1.4*50
woven ≤60 30~35 1450 3~5 0.85*2 3301*1680*3300 2300
ZWS1245 1 5.4 37 Upper: 4*50
Lower: 1.4*50
woven ≤60 45~60 1450 3~5 0.85*3 4350*1660*5066 2631
2ZWS1245 2 5.4 37 Upper: 4*50
Lower: 1.4*50
woven ≤60 45~60 1450 3~5 0.85*3 4496*1660*5648 3612
ZWS1260 1 7.2 20 4*25 woven ≤60 60~90 1450 3~5 0.85*4 6576*1660*4240 3290
2ZWS1260 2 7.2 37 Upper: 4*50
Lower: 1.4*50
woven ≤60 60~90 1450 3~5 0.85*4 5678*1660*6156 4532



High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 0High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 1

                                                     Motor Vibrating Mesh Screen



High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 2High Reliable Wire Cloth Screening Equipment Iron Ore Screening Equipment 3

                                                Electromagnetic Vibrating Mesh Screen
